Add Server
Add Authorisation Servers. Enable Data Receiver to authenticate their client applications and access your organisation's published APIs in a secure way.
Prerequisites
- Get an Access Token with the
directory:websitescope - if you want to add or manage OAuth Authorisation Servers using Connect's APIs.
Register Authorisation Server
-
Select Servers > New Server.
-

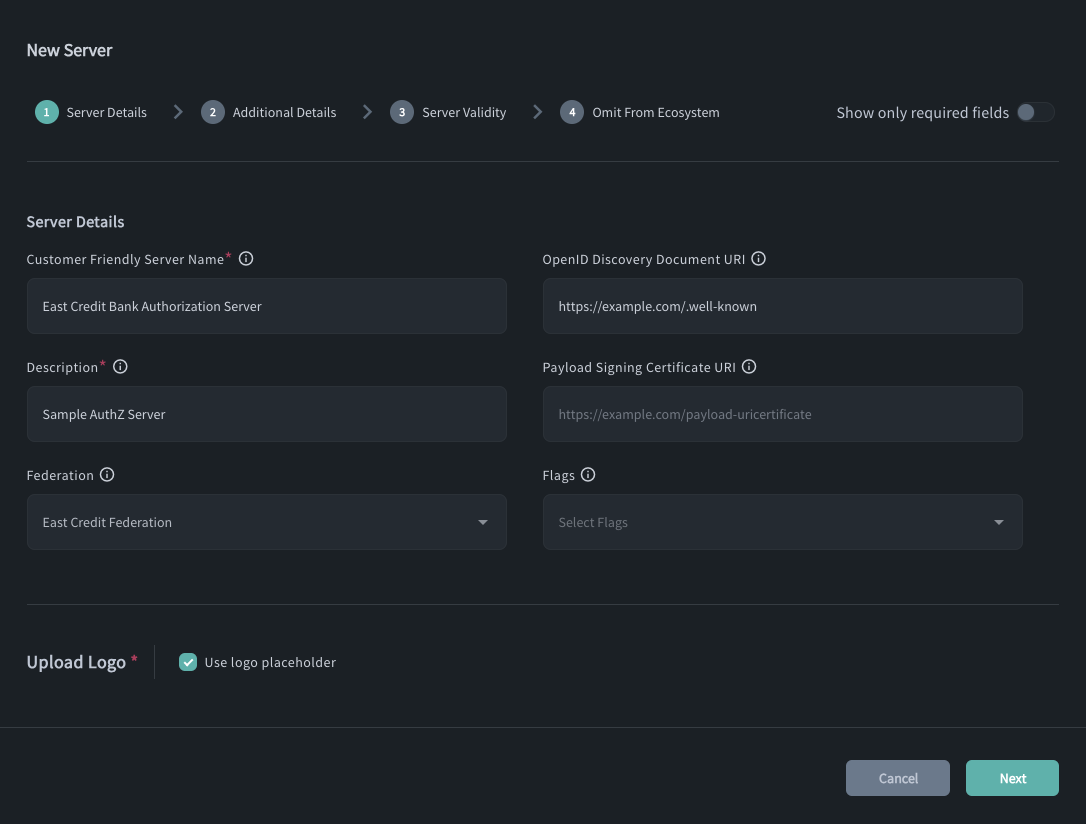

Fill in the details of the organization's authorization server.
| Field name | Required | Field description | Example |
|---|---|---|---|
| Customer friendly server name | Yes | Should be equal to the brand name that can be easily identifiable by the customer on the consent flowAdd the name without abbreviations so that it can be recognized by the customer that is to provide their consent to share data. Maximum of 256 characters | Raidiam |
| OpenID discovery document URI | Yes | The URI that points to the OpenID discovery document (/.well-known endpoint. | https://raidiam.com/openid-configuration/.well-known |
| Payload signing certificate URI | Yes | URI points to the Signature Certificates and Public Keys used to payload signatures by Data Receivers.Should point to the certificate you uploaded to the authorization server in the previous section of this article. | https://raidiam.com/payload-uricertificate |
| Customer friendly logo URI | Yes | The Logo that represents the Brand Name added on the Customer Friendly Name | https://raidiam.com/logo.svg |
| Developer Portal URI | No | URI for the Server developer portal | https://developers.raidiam.com |
| Terms of service URI | No | URI that points to the server terms of service URI | https://raidiam.com/tos |
| Notification webhook endpoint | No | Endpoint of the webhook notification URI that will be used to receive notifications from the Directory.Note this endpoint needs confirmation. Visit the URL sent to endpoint within 3 days to confirm the subscription. This URI is optional and allows the server to receive notification in case any relevant information on Connect is added or updated. | webhook.site/97askmbf-c320-4982-b0ff-f7728893aa |
| Description | Yes | 1. Character limit: 256 characters 2. Description cannot have links. 3. Should contain a description of the brand with any additional information the user should know. Can also contain: * Organization introductory text * Organization Start Date * Institution Differences * Contact Channels | This is where you can describe your brand, bringing any additional information to help the user make the right choice while providing their authorization to access the APIs. |
- Save.
Some organizations may have more than one authorization servers responsible for issuing access tokens that give access to different APIs or services. In such cases, add additional authorization servers your organization has.
Delete Server
-
Select Servers.
-
Select Delete action (bin icon under the Actions label) next to the authorisation server you wish to remove.
Deleting an authorisation server within Connect does not make it impossible for
client applications to authenticate themselves with the server and get access
tokens if the server's configuration was already discovered by the client
application and the client was already registered at the authorisation server
unless the used client authentication method is private_key_jwt.
If you want client applications not to be able to request tokens from an authorisation server you added in Connect before, you need to configure your server and disable access or unregister any client applications that should no longer have access to the organisation's authorisation server APIs.
View and Edit Server Details
-
Select Servers.
-
Select the authorisation server from the list.
-
Select Server Details.
-
Select Edit Authorisation Server if you wish to change the Authorisation Server's configuration.
Manage OAuth Authorisation Servers Using APIs
Raidiam Connect allows organisations to integrate with the following APIs for OAuth Authorisation Server Management:
