Enable Single Sign-On

Utilize Single Sign-On and enable Users to authenticate once and access mutliple applications and services deployed within an ecosystem or federation.

External applications and platforms can utilize Raidiam Connect as an OIDC-compliant Identity Provider (IDP). The integration is based on the Financial Grade API (FAPI) standard and uses:

Pushed Authorization Requests (PAR)
Authorization Code Flow
Proof Key of Code Exchange (PKCE)

Authorization Code Flow

In Authorization Code Flow -- defined in the OAuth 2.0 Authorization Framework (RFC6749) specification -- an authorization server sends a temporary (authorization) code to a client application. The code is exchanged for security tokens: access tokens, refresh tokens, and ID tokens. This flow is available for confidential clients, for example, web applications with a backend that can store credentials securely. This way, the client can obtain one or more of the following token types:

The authorization code proves to the authorization server that the client requesting a token is permitted to do so. The user consents that the client can access the resource before the authorization server passes the code.

Pushed Authorization Requests

OAuth Pushed Authorization Requests (PAR RFC9126) is an OAuth 2.0 extension for the PAR endpoint that allows client applications to push the payloads of authorization requests to authorization server via direct requests to the PAR endpoint. In return, the client application receives a request URI that is used as a reference to the previously sent payload data in a subsequent call to the authorization server's /authorization endpoint.

Proof Key of Code Exchange

The Proof Key of Code Exchange (PKCE) is an extension of the standard authorization code flow. It is designed to be a secure substitute for the implicit flow for single-page applications (SPA) or native applications.

Authorization code grant with PKCE introduces a technique to prevent unauthorized access to resources in the case of code interception. Due to the Raidiam Authorisation Server FAPI 2.0 Security Profile compliance, using PKCE is mandatory for all applications.

In PKCE, the client application generates a code_verifier and transforms it into code_challenge. code_verifier is a random key that prevents the authorization code from being intercepted. code_verifieris generated by the client application for every authorization request and transformed into code_challengeaccording to the code_challenge_method set for the client application in advance. It’s mandatory to set the code_challenge_method value to S256.

While sending the request to the PAR or authorization endpoints, the client application must include the code challenge in the request. While requesting token, the requests to the authorization server must also include the code challenge of the same value that was sent to the PAR or authorization endpoint.

Integration Pattern for SSO

To integrate with Raidiam for authentication, client applications need to push their authorization requests to Raidiam Authorisation Servers in order to obtain the request URI that refers to their subsequent call to the OAuth authorization endpoint.

Once the application request authorization, the user is redirected to Raidiam Login Screen where they can authenticate themselves. Once authenticated, the user provides their consent to share their data stored by Raidiam and gets redirected back to the application.

At the same time, the client application receives an authorization code that can be exchanged for tokens. The application can utilize the tokens issued by Raidiam's Authorization Server in order to access its APIs or get information about the authentication event and the user.

Setting Up Directory

Application added and active,
Within your application, register the same redirect_uri that you will use in the Single Sign-On process.

The redirect URI tells Raidiam's Authorization Server where to redirect the user after they authenticate themselves and provide their consent.

You can register multiple redirect URIs.

warning
After creating your software statement, any new redirect_uri requires a manual update from Raidiam's side.
Provide your Trust Framework Administrator with a client identifier of your application (Software Statement ID) -- enabling the administrator to configure the application to request necessary scopes.

Discover Raidiam Authorization Server Configuration

Add Raidiam Authorization Server's OIDC Discovery (/.well-known) endpoint to your application. Utilize any OAuth library you want.

For example, the URLs for Raidiam's Demo Environment look like the following:

OpenID Discovery: https://auth.demo.raidiam.io/.well-known/openid-configuration
Authorization endpoint: https://auth.demo.raidiam.io/auth
Token endpoint: https://matls-auth.demo.raidiam.io/token
User Info endpoint: https://auth.demo.raidiam.io/me

Postman Collection

You can utilize the below Postman API collection to quickly test the integration:

{
	"info": {
		"_postman_id": "9a531af2-d63a-4bc6-bdc9-d92d3a8bdfe9",
		"name": "SSO - Raidiam Connect Example",
		"schema": "https://schema.getpostman.com/json/collection/v2.1.0/collection.json",
		"_exporter_id": "19018955"
	},
	"item": [
		{
			"name": "SSORequest with TrustFramework Profile",
			"protocolProfileBehavior": {
				"disabledSystemHeaders": {
					"accept": true
				}
			},
			"request": {
				"auth": {
					"type": "noauth"
				},
				"method": "POST",
				"header": [
					{
						"key": "Accept",
						"value": "application/json",
						"type": "text"
					}
				],
				"url": {
					"raw": "{{auth}}?scope=openid trust_framework_profile&client_id={{clientID}}&redirect_uri={{redirectURI}}&state={{state}}&nonce={{nonce}}&response_type=code id_token&code_challenge=hsCf5fSU7C4zy0EyarwqHPWN3ABmP6hH9pPyFjBUFo4&code_challenge_method=S256",
					"host": [
						"{{auth}}"
					],
					"query": [
						{
							"key": "scope",
							"value": "openid trust_framework_profile"
						},
						{
							"key": "client_id",
							"value": "{{clientID}}"
						},
						{
							"key": "redirect_uri",
							"value": "{{redirectURI}}"
						},
						{
							"key": "state",
							"value": "{{state}}"
						},
						{
							"key": "nonce",
							"value": "{{nonce}}"
						},
						{
							"key": "response_type",
							"value": "code id_token"
						},
						{
							"key": "code_challenge",
							"value": "hsCf5fSU7C4zy0EyarwqHPWN3ABmP6hH9pPyFjBUFo4"
						},
						{
							"key": "code_challenge_method",
							"value": "S256"
						}
					]
				}
			},
			"response": []
		},
		{
			"name": "SSOrequest with OpenID Profile + TrustFrameworkProfile",
			"protocolProfileBehavior": {
				"disabledSystemHeaders": {
					"accept": true
				}
			},
			"request": {
				"auth": {
					"type": "noauth"
				},
				"method": "POST",
				"header": [
					{
						"key": "Accept",
						"value": "application/json",
						"type": "text"
					}
				],
				"body": {
					"mode": "urlencoded",
					"urlencoded": [
						{
							"key": "grant_type",
							"value": "client_credentials",
							"type": "text"
						},
						{
							"key": "scope",
							"value": "directory:software",
							"type": "text"
						},
						{
							"key": "client_id",
							"value": "d3b64db5-2a54-45a1-8dec-ab278f8e30db",
							"type": "text"
						}
					]
				},
				"url": {
					"raw": "{{auth}}?scope=openid profile trust_framework_profile&client_id={{clientID}}&redirect_uri={{redirectURI}}&nonce={{nonce}}&response_type=code id_token&code_challenge=ZJXBMj6ffuUYVfPD-GdHWGIhUbIH1plqnRrR7WYijkY&code_challenge_method=S256",
					"host": [
						"{{auth}}"
					],
					"query": [
						{
							"key": "scope",
							"value": "openid profile trust_framework_profile"
						},
						{
							"key": "client_id",
							"value": "{{clientID}}"
						},
						{
							"key": "redirect_uri",
							"value": "{{redirectURI}}"
						},
						{
							"key": "state",
							"value": "{{state}}",
							"disabled": true
						},
						{
							"key": "nonce",
							"value": "{{nonce}}"
						},
						{
							"key": "response_type",
							"value": "code id_token"
						},
						{
							"key": "code_challenge",
							"value": "ZJXBMj6ffuUYVfPD-GdHWGIhUbIH1plqnRrR7WYijkY"
						},
						{
							"key": "code_challenge_method",
							"value": "S256"
						}
					]
				}
			},
			"response": []
		},
		{
			"name": "Request token",
			"request": {
				"method": "POST",
				"header": [
					{
						"key": "Content-Type",
						"value": "application/x-www-form-urlencoded;charset=UTF-8",
						"type": "text"
					},
					{
						"key": "Content-Length",
						"value": "196",
						"type": "text",
						"disabled": true
					},
					{
						"key": "Accept",
						"value": "application/json;charset=UTF-8",
						"type": "text"
					}
				],
				"body": {
					"mode": "urlencoded",
					"urlencoded": [
						{
							"key": "grant_type",
							"value": "authorization_code",
							"type": "text"
						},
						{
							"key": "redirect_uri",
							"value": "https://www.example.com/cb",
							"type": "text"
						},
						{
							"key": "code",
							"value": "tQes2Qdv71SigLej-H5JftWoGzkmDrmcOv0-I0e8QIW",
							"type": "text"
						},
						{
							"key": "client_id",
							"value": "4f5e14e7-2cb8-476c-8bcf-7f9899f5dcd8",
							"type": "text"
						}
					]
				},
				"url": {
					"raw": "https://matls-auth.sandbox.directory.openbankingbrasil.org.br/token",
					"protocol": "https",
					"host": [
						"matls-auth",
						"sandbox",
						"directory",
						"openbankingbrasil",
						"org",
						"br"
					],
					"path": [
						"token"
					]
				}
			},
			"response": []
		},
		{
			"name": "/Me Request",
			"request": {
				"method": "GET",
				"header": []
			},
			"response": []
		}
	],
	"variable": [
		{
			"key": "authURL",
			"value": "https://auth.sandbox.directory.openbankingbrasil.org.br/auth?"
		},
		{
			"key": "auth",
			"value": "https://auth.sandbox.directory.openbankingbrasil.org.br/auth"
		},
		{
			"key": "tokenURL",
			"value": "https://matls-auth.sandbox.directory.openbankingbrasil.org.br/token"
		},
		{
			"key": "clientID",
			"value": "4f5e14e7-2cb8-476c-8bcf-7f9899f5dcd8"
		},
		{
			"key": "nonce",
			"value": "gXGldLyytu"
		},
		{
			"key": "state",
			"value": "xyzABC123"
		},
		{
			"key": "redirectURI",
			"value": "https://www.example.com/cb"
		}
	]
}

Push Authorization Request

Below, you can find a Postman implementation of a pushed authorization request (PAR).

{
	"info": {
		"_postman_id": "3ac5b905-75d5-49be-b460-e31e63706470",
		"name": "SSO - Raidiam Connect Example PAR",
		"schema": "https://schema.getpostman.com/json/collection/v2.1.0/collection.json",
		"_exporter_id": "19018955"
	},
	"item": [
		{
			"name": "PAR - Working (TLS_Client_Auth)",
			"request": {
				"method": "POST",
				"header": [],
				"body": {
					"mode": "urlencoded",
					"urlencoded": [
						{
							"key": "response_type",
							"value": "code",
							"type": "text"
						},
						{
							"key": "code_challenge_method",
							"value": "S256",
							"type": "text"
						},
						{
							"key": "nonce",
							"value": "gXGldLyaatu",
							"type": "text"
						},
						{
							"key": "client_id",
							"value": "4f5e14e7-2cb8-476c-8bcf-7f9899f5dcd8",
							"type": "text"
						},
						{
							"key": "scope",
							"value": "openid trust_framework_profile",
							"type": "text"
						},
						{
							"key": "redirect_uri",
							"value": "https://www.example.com/cb",
							"type": "text"
						},
						{
							"key": "state",
							"value": "xyaaaABC124",
							"type": "text"
						},
						{
							"key": "code_challenge",
							"value": "47DEQpj8HBSa-_TImW-5JCeuQeRkm5NMpJWZG3hSuFU",
							"type": "text"
						}
					]
				},
				"url": {
					"raw": "https://matls-auth.sandbox.directory.openbankingbrasil.org.br/request",
					"protocol": "https",
					"host": [
						"matls-auth",
						"sandbox",
						"directory",
						"openbankingbrasil",
						"org",
						"br"
					],
					"path": [
						"request"
					],
					"query": [
						{
							"key": "client_assertion",
							"value": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiI0ZjVlMTRlNy0yY2I4LTQ3NmMtOGJjZi03Zjk4OTlmNWRjZDgiLCJpc3MiOiI0ZjVlMTRlNy0yY2I4LTQ3NmMtOGJjZi03Zjk4OTlmNWRjZDgiLCJhdWQiOiJodHRwczovL21hdGxzLWF1dGguc2FuZGJveC5kaXJlY3Rvcnkub3BlbmJhbmtpbmdicmFzaWwub3JnLmJyIiwiZXhwIjoxNjc1Mjk5MDgyLCJqdGkiOiIxMzc4M2QyZC1lODgxLTQyMGEtOGRhOS1jMjdhN2M4ZDA2MDgiLCJpYXQiOjE2NzUyOTUuNDgyfQ.fnoxgvCDTp7PbHINdngelZqYlHUTOANVMIxJm6zoyo1cxvvkgicFO6wfy5fZaem0OvecI7YuekdCkzBb8MCAUdaUzaurfOisEJddiSE-jJZVrQf2rK5ZIC76faKBDJ1zUurrcjlZaB6sBLs4u3XyjZ33iumJkK9GpWfdpwOvI4TUU0k-aT_K9FfFmIIm4Qa-tJvGzqkYSAJ4hv1OjocXsqOanqCaxgIFb-Ra88qyT7p03ltEDSI9rgC9fJLrPjFyuC_qpzSIx6rENNwP7sPTPAUhE1mSjWDq5uILh9Go56n3flNduJP7slUspMO064-BgW_gW_mgmg8ziGXUdZ6dVQ",
							"disabled": true
						},
						{
							"key": "client_assertion_type",
							"value": "urn%3Aietf%3Aparams%3Aoauth%3Aclient-assertion-type%3Ajwt-bearer",
							"disabled": true
						}
					]
				}
			},
			"response": []
		}
	],
	"variable": [
		{
			"key": "authURL",
			"value": "https://auth.sandbox.directory.openbankingbrasil.org.br/auth?"
		},
		{
			"key": "auth",
			"value": "https://auth.sandbox.directory.openbankingbrasil.org.br/auth"
		},
		{
			"key": "tokenURL",
			"value": "https://matls-auth.sandbox.directory.openbankingbrasil.org.br/token"
		},
		{
			"key": "clientID",
			"value": "4f5e14e7-2cb8-476c-8bcf-7f9899f5dcd8"
		},
		{
			"key": "nonce",
			"value": "gXGldLyytu"
		},
		{
			"key": "state",
			"value": "xyzABC123"
		},
		{
			"key": "redirectURI",
			"value": "https://www.example.com/cb"
		}
	]
}

For PAR, call the pushed_authorization_request_endpoint endpoint from the well-known. In this example, it's /request.

Field	Required	Description	Value
client_id	yes	Retrieved from the Software StatementOAuth 2.0 Client Identifier valid at the Authorization Server.	my-client-app
response_type	yes	OAuth 2.0 Response Type value that determines the authorization processing flow to be used, including what parameters are returned from the endpoints used.	code
redirect_uri		Redirection URI to which the response is sent. Defined when creating the software statement (application).This URI MUST exactly match one of the Redirection URI values for the Client pre-registered at the OpenID Provider, with the matching performed as described in Section 6.2.1 of RFC3986 (Simple String Comparison). When using this flow, the Redirection URI SHOULD use the `https` scheme; however, it MAY use the `http` scheme, provided that the Client Type is `confidential`, as defined in Section 2.1 of OAuth 2.0, and provided the OP allows the use of `http` Redirection URIs in this case. The Redirection URI MAY use an alternate scheme, such as one that is intended to identify a callback into a native application.
scope	yes	OpenID Connect requests MUST contain the `openid` scope value. If the `openid` scope value is not present, the behavior is entirely unspecified. Other scope values MAY be present. Scope values used that are not understood by an implementation SHOULD be ignored.See Sections 5.4 and 11 for additional scope values defined by this specification.	`openid trust_framework_profile`or`openid profile trust_framework_profile`
nonce		String value used to associate a Client session with an ID Token, and to mitigate replay attacks.The value is passed through unmodified from the Authentication Request to the ID Token. Sufficient entropy MUST be present in the `nonce` values used to prevent attackers from guessing values. For implementation notes, see Section 15.5.2.
response_mode	yes	Determines how the result of the authorization request is formatted.In this case, the `query.jwt` response mode indicates that the authorization response parameters will be encoded as a JWT and sent via the query string of the redirect_uri.This mode is part of the JARM (Joint Authentication Request Markup) extension to OAuth and OpenID Connect. The use of JARM provides an additional layer of security, ensuring the integrity and authenticity of the returned parameters.	query.jwt
state	no	Opaque value used to maintain state between the request and the callback.Typically, Cross-Site Request Forgery (CSRF, XSRF) mitigation is done by cryptographically binding the value of this parameter with a browser cookie.
code_challenge	yes	Utilized in PKCE.Code challenge is a base64 URL-encoded result of transforming the code verifier using the SHA256 algorithm.	BASE64URL-ENCODE(SHA256(ASCII(code_verifier)))
code_challenge_method	yes	The algorithm used to create the code challenge.	S256

Sample request:

POST https://matls-auth.demo.raidiam.io/request

Body (x-www-form-urlencoded):
response_type=code
code_challenge_method=S256
nonce=gXGldLyaatu
client_id=b7add03c-b18e-495f-b6e5-499ef745a6b9
scope=openid trust_framework_profile
redirect_uri=https://www.example.com
state=xyaaaABC124
code_challenge=47DEQpj8HBSa-_TImW-5JCeuQeRkm5NMpJWZG3hSuFU

Sample response:

{"expires_in":60,"request_uri":"urn:ietf:params:oauth:request_uri:o34QcmivOOqJ_iuWqPmN6"}

Authorize Application

Using the Connect's /auth endpoint, build out the full request endpoint by including the request URI you received in the previous section as a query parameter.

Sample: https://auth.demo.raidiam.io/auth?request_uri=urn:ietf:params:oauth:request_uri:o34QcmivOOqJ_iuWqPmN6&client_id=b7add03c-b18e-495f-b6e5-499ef745a6b9

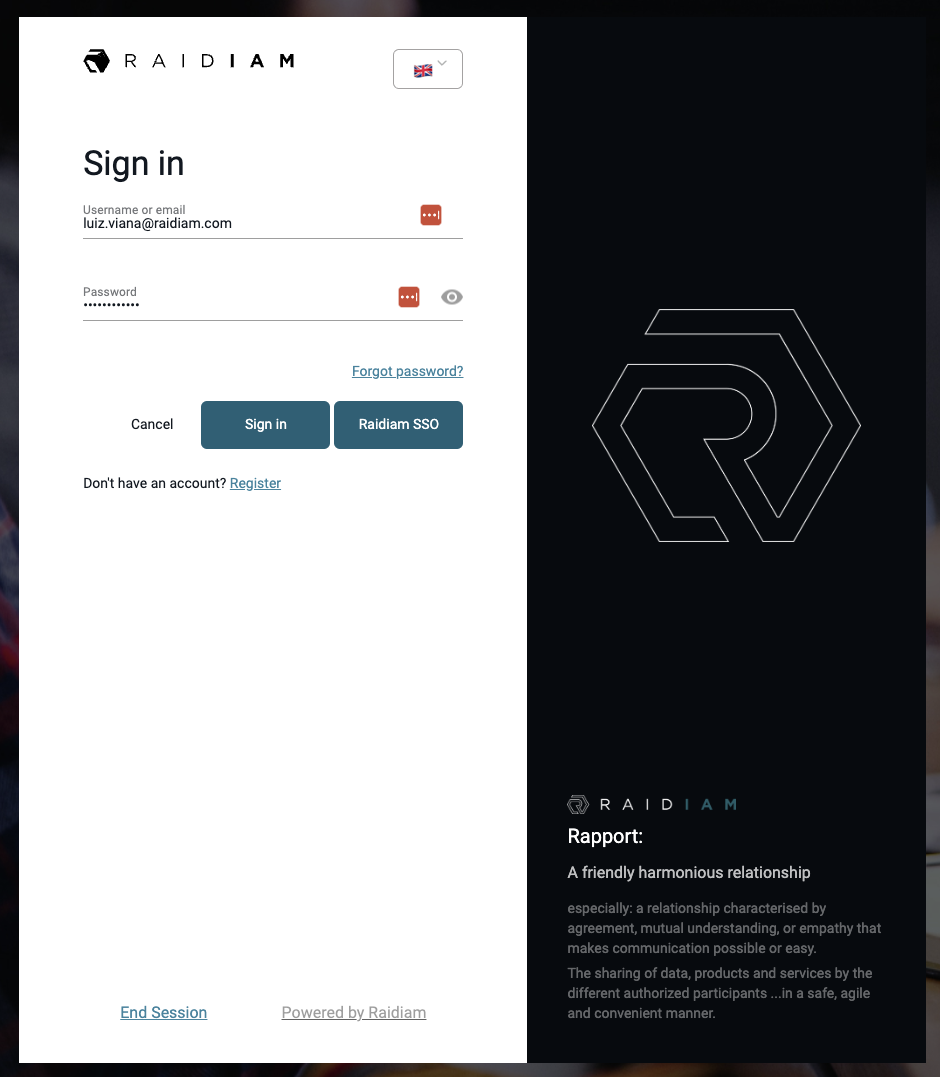

Authorization Server Authenticates End-User

User authentication

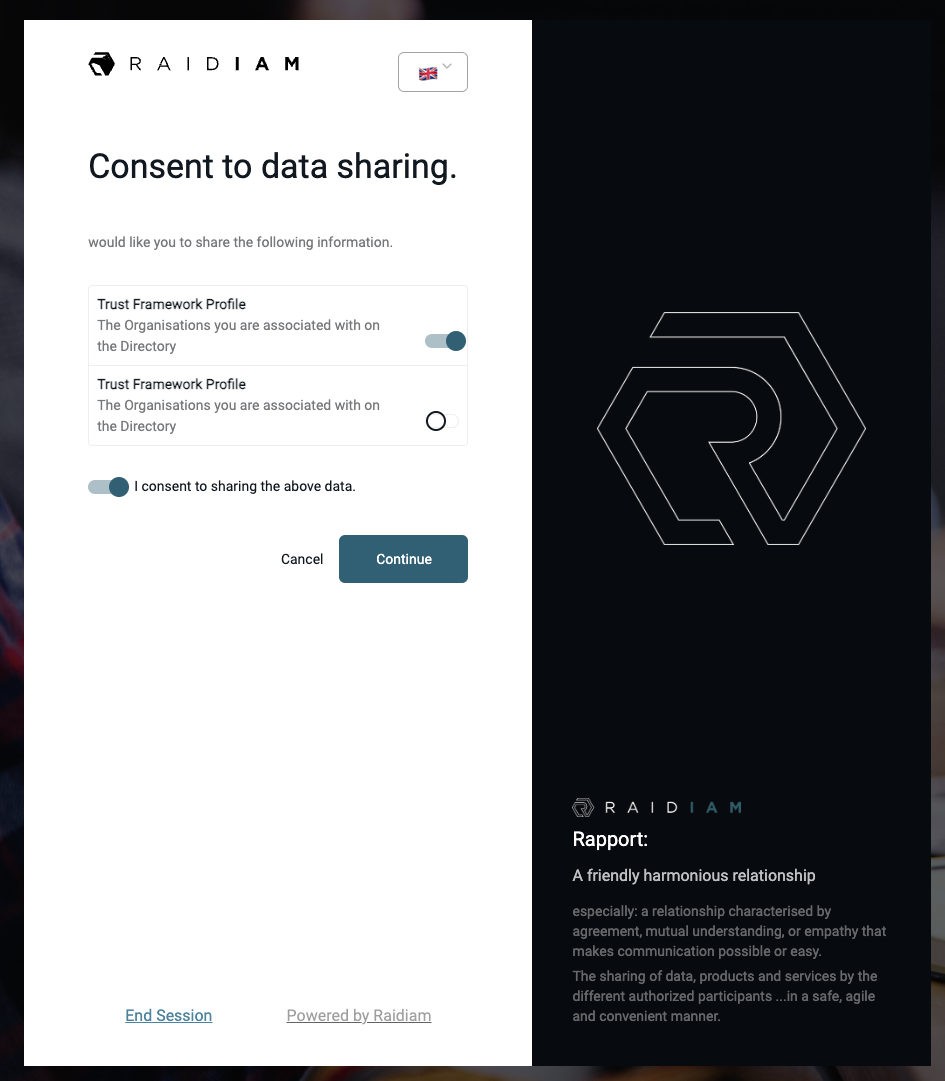

Authorization Server Obtains End-User Consent/Authorization

Consent

Authorization Server Redirects End-User Back to Client

The redirect URL now contains a JSON Web Token (JWT) with the authorization code.

Sample redirect:

https://www.example.com/?response=eyJhbGciOiJQUzI1NiIsInR5cCI6IkpXVCIsImtpZCI6IjE2MzIxNTEyMzM0MzctZjdiMzNlYWZmYyJ9.eyJjb2RlIjoiWEYzRXNKVElrcFRoSC12cXdvd0VFWG1Td1JFNDlnbmhvNkVMUURGWEZ1eSIsImF1ZCI6ImI3YWRkMDNjLWIxOGUtNDk1Zi1iNmU1LTQ5OWVmNzQ1YTZiOSIsImV4cCI6MTY5NDUyMjUxNSwiaXNzIjoiaHR0cHM6Ly9hdXRoLmRlbW8ucmFpZGlhbS5pbyJ9.OnxDxFmBiyLHXk5L91HTCreE6EY2BULH5kFEkAlgopJL4qynlKY2F3E075lnh4JGgG5bbzgHXwsSI1oTtBcoeoBrzzF1Z9Rd1qNV3KsFGjeyB1KeAhpoVxO34T5hPNnaYXYVxhoTDSsrsjnAdMvXluk6LF5HNT_GJfzE15O9PcHYlTsLTwRYTDt4G25HUzXLZWbYt58Kpjck0IYbs8_PTNi7Gzn-rC_dGn1uvW2wrIEPT-WqyznV9Ax5Svb2QwgGeq3ZtZEgpsnqA664MetJlq0PA30tw9FPABRtDx4l7KOAKU0VTjYgPMpY06TYCDhJC1GSBEo1CEcM0ZFIdSG6Pw

warning

Remember to properly validate all the fields in the JWT as well as its signature

Within the JWT you can find the authorisation code: XF3EsJTIkpThH-vqwowEEXmSwRE49gnho6ELQDFXFuy

Get Tokens

With the code returned from the auth endpoint, call the token endpoint to get the user's information. You will need a transport certificate.

note

In order for the client to be able to talk to the directory and call the MTLS protected endpoints such as the token endpoint, it needs valid transport certificates. There is a good explanation on how to generate these on the 'Directory Operation Manual'

Token URL: https://matls-auth.demo.raidiam.io/token

Request Body:

grant_type:authorization_code
redirect_uri:https://www.example.com
code:XF3EsJTIkpThH-vqwowEEXmSwRE49gnho6ELQDFXFuy
client_id:b7add03c-b18e-495f-b6e5-499ef745a6b9
code_verifier:dBjftJeZ4CVP-mB92K27uhbUJU1p1r_wW1gFWFOEjXk

Since you’re using PKCE, you have to use the code_verifier information of the code_challenge provided.

Doing a POST with this information gives you:

{
    "access_token": "Nqa7-dzlUFj4ZpL7k1a1VRRkOS8xzQyK29oozJiHUB5",
    "expires_in": 3600,
    "id_token": "eyJhbGciOiJQUzI1NiIsInR5cCI6IkpXVCIsImtpZCI6IjE2MzIxNTEyMzM0MzctZjdiMzNlYWZmYyJ9.eyJzdWIiOiJsdWl6LnZpYW5hQHJhaWRpYW0uY29tIiwidHhuIjoicTBSd01fdnprdjM5em9hMG5USkREYUptX1ZIcEhMelNoZUI3d2FLQi10VCIsInRydXN0X2ZyYW1ld29ya19wcm9maWxlIjp7ImJhc2ljX2luZm9ybWF0aW9uIjp7InN0YXR1cyI6IkFjdGl2ZSIsInVzZXJfZW1haWwiOiJsdWl6LnZpYW5hQHJhaWRpYW0uY29tIn0sImNlcnRpZmljYXRpb25fbWFuYWdlciI6ZmFsc2UsIm9yZ19hY2Nlc3NfZGV0YWlscyI6eyIwMmI2NDYzNF9jNzNlXzRlNTVfOWJiZl9iNGZkNGIxOTU2MmQiOnsib3JnX2FkbWluIjp0cnVlLCJvcmdfcmVnaXN0cmF0aW9uX251bWJlciI6Ikx1aXpUZXN0T3JnIiwib3JnYW5pc2F0aW9uX25hbWUiOiJMdWl6VGVzdE9yZyJ9fSwic3VwZXJfdXNlciI6dHJ1ZSwic3lzdGVtX3VzZXIiOnRydWV9LCJub25jZSI6ImdYR2xkTHlhYXR5IiwiYXRfaGFzaCI6ImtuQThhWjFqTDktSHlNUmZkYm1obXciLCJhdWQiOiJiN2FkZDAzYy1iMThlLTQ5NWYtYjZlNS00OTllZjc0NWE2YjkiLCJleHAiOjE2OTQ1MjYwODQsImlhdCI6MTY5NDUyMjQ4NCwiaXNzIjoiaHR0cHM6Ly9hdXRoLmRlbW8ucmFpZGlhbS5pbyJ9.eNsLp5rmZPKdo_T5SjFQko5nwrUBvycvmP1mHDjuzNr2lb_ykgk08N0XBBq1IXyMRaTrpuKi7q5zLyz6rxVPqA7rj-_JX_DG-PWf8nhiJ-q14TlSR8sLhXZo1EMvzSvUnawPs48pAoMiVb6ckcfRuNa-Wb9ib7UTtvbEXKaMwJHcWnjvsv3mkrcUPLJ0jnUT1y8pqB6nt4rluBTnd0ji_VHAHBnZat8D5QHjwrRK1CYarqBxc_s0KSZB-b-mZsdg51dHR89YyfHLWep_-xnlGlxJOFtUA_VroTIpy6fTT76QMXFV2dMHB78wkS0zFmCS0zfUXmcMsKTo-erG0mHsMw",
    "scope": "openid trust_framework_profile",
    "token_type": "Bearer"
}

Inspecting the ID token received gives you the JSON with information similar to the below:

{
  "sub": "luiz.viana@raidiam.com",
  "txn": "q0RwM_vzkv39zoa0nTJDDaJm_VHpHLzSheB7waKB-tT",
  "trust_framework_profile": {
    "basic_information": {
      "status": "Active",
      "user_email": "luiz.viana@raidiam.com"
    },
    "certification_manager": false,
    "org_access_details": {
      "02b64634_c73e_4e55_9bbf_b4fd4b19562d": {
        "org_admin": true,
        "org_registration_number": "LuizTestOrg",
        "organisation_name": "LuizTestOrg"
      }
    },
    "super_user": true,
    "system_user": true
  },
  "nonce": "gXGldLyaaty",
  "at_hash": "knA8aZ1jL9-HyMRfdbmhmw",
  "aud": "b7add03c-b18e-495f-b6e5-499ef745a6b9",
  "exp": 1694526084,
  "iat": 1694522484,
  "iss": "https://auth.demo.raidiam.io"
}

Alternatively, you can also use the access token to call the Connect's /me endpoint whenever needed.

Sample request:

GET https://matls-auth.demo.raidiam.io/me
Header: {Authorization: "Bearer Nqa7-dzlUFj4ZpL7k1a1VRRkOS8xzQyK29oozJiHUB5"}

Sample response:

{
    "sub": "luiz.viana@raidiam.com",
    "txn": "q0RwM_vzkv39zoa0nTJDDaJm_VHpHLzSheB7waKB-tT",
    "trust_framework_profile": {
        "basic_information": {
            "status": "Active",
            "user_email": "luiz.viana@raidiam.com"
        },
        "certification_manager": false,
        "org_access_details": {
            "02b64634_c73e_4e55_9bbf_b4fd4b19562d": {
                "org_admin": true,
                "org_registration_number": "LuizTestOrg",
                "organisation_name": "LuizTestOrg"
            }
        },
        "super_user": true,
        "system_user": true
    }
}

Get More Information About Authenticated User

If you require additional information such as the user's name and national ID number (CPF for Brazil), you can add profile to your scope request.

By sending the scope openid profile trust_framework_profile, this is what the ID token would contain:

{
    "sub": "luiz.viana@raidiam.com",
    "txn": "q0RwM_vzkv39zoa0nTJDDaJm_VHpHLzSheB7waKB-tT",
    "trust_framework_profile": {
        "basic_information": {
            "status": "Active",
            "user_email": "luiz.viana@raidiam.com"
        },
        "certification_manager": false,
        "org_access_details": {
            "02b64634_c73e_4e55_9bbf_b4fd4b19562d": {
                "org_admin": true,
                "org_registration_number": "LuizTestOrg",
                "organisation_name": "LuizTestOrg"
            }
        },
        "super_user": true,
        "system_user": true
    },
    "email": "luiz.viana@raidiam.com",
    "email_verified": true,
    "phone_number": "+5584994170198",
    "phone_number_verified": true,
    "family_name": "Viana",
    "given_name": "Luiz",
    "name": "Luiz Viana"
}

Authorization Code Flow​

Pushed Authorization Requests​

Proof Key of Code Exchange​

Integration Pattern for SSO​

Setting Up Directory​

Discover Raidiam Authorization Server Configuration​

Postman Collection​

Push Authorization Request​

Authorize Application​

Authorization Server Authenticates End-User​

Authorization Server Obtains End-User Consent/Authorization​

Authorization Server Redirects End-User Back to Client​

Get Tokens​

Get More Information About Authenticated User​
